LED VideoStar – Ticker Designer Tour 2018-01-10T14:19:59+00:00

The Ticker designer is used to create a variety of custom overlays, such as:

videostar

  • News text crawls
  • Sports scores
  • Financial news and stock prices
  • Current weather and forecasts
  • And many others…

 Supported content

Tickers support the following content:

  • Typed-in text
  • Geometric shapes (rectangles, ellipses)
  • Current date
  • Current time
  • Data fields – RSS, MediaRSS, XML, Twitter*, Facebook*, Google Calendar*
  • Image overlays (logos, transparent PNG images)

* Twitter, Facebook, and Google Calendar features available Q2 2018

You can add any number of the content listed above to any ticker.

 Supported layouts

The ticker width automatically adapt to the player’s screen settings, including different screen orientations (portrait or landscape).  Multiple displays are also supported.  With multi-display layouts, you can create designs that span all available displays or be positioned on individual displays.  Ticker size can also be modified to cover the entire screen area so you can position various elements anywhere.

Differences between tickers and templates

Tickers are overlays that appear on top of any content displayed on screen.  This includes all supported content types, and templates.  You don’t schedule tickers like any other content.  You publish tickers and they will appear on screen for as long as there is scheduled playlists.  You can also assign tickers to specific playlists.

Tickers can be disabled for the duration of any content or template in the content library.

Creating a new ticker

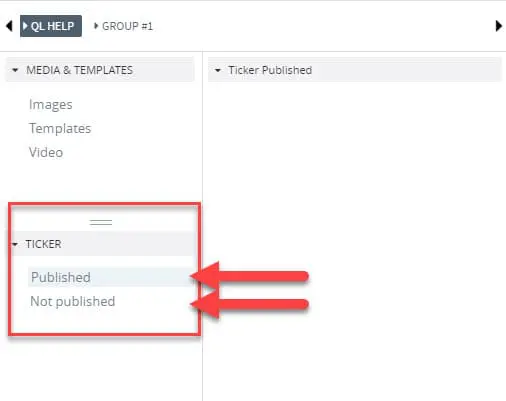

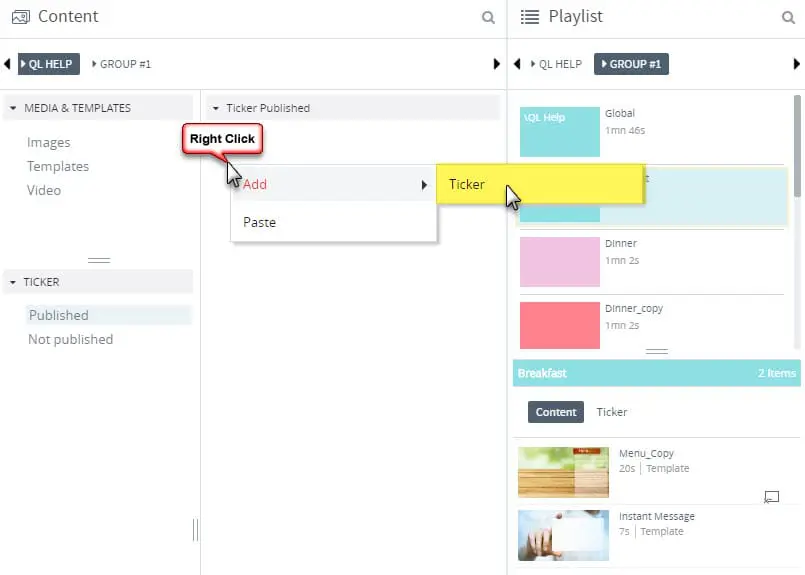

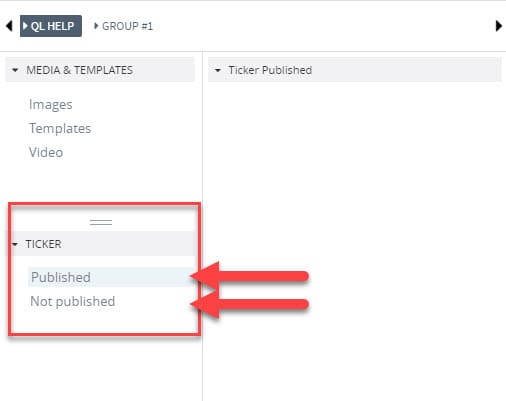

  • To add a new ticker, right-click in the desired folder (Published or Not published under TICKER) and select Add Ticker.

videostar

videostar

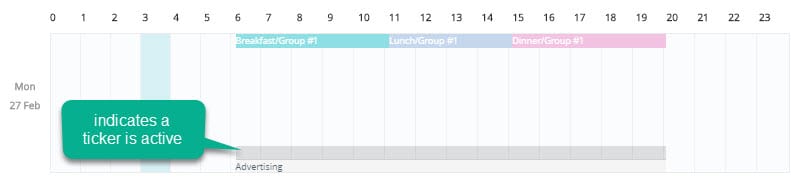

If you add a new ticker in the Published folder, the ticker will show up on your player’s display next time you push an update to the group.  The ticker will appear on screen any time a playlist is scheduled.  Published tickers appear as a grey band in the scheduling grid.

videostar

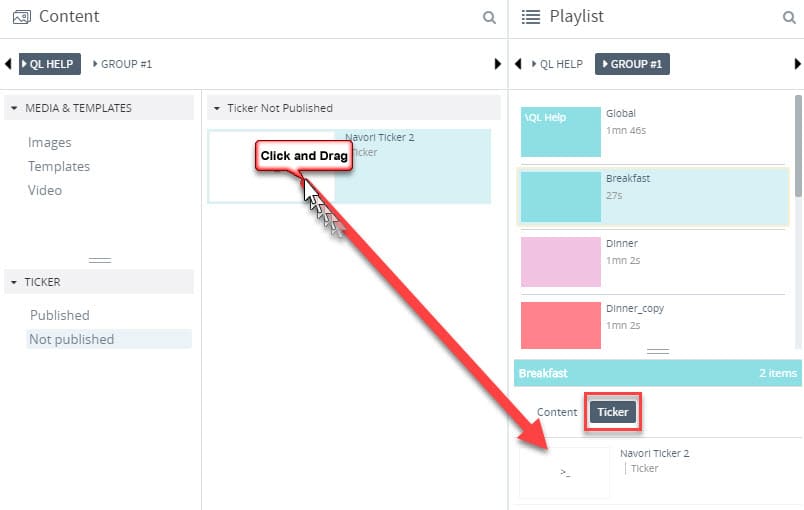

Tickers can also be assigned to specific playlists.  To assign one or more tickers to a playlist, click their symbol to select the playlist, then click the playlist Ticker button to switch to ticker view.  Drag and drop the ticker from the Ticker > Not published folder into the playlist ticker view.

videostar

When you program a mix of published and playlist assigned tickers, all the tickers will play according to their assigned roles.  When the schedule transitions to a playlist with no assigned ticker, only the published ticker will be shown.

If you add the ticker to the Not published folder, the ticker will be saved but will not play.  Think of this folder as a “parking” area for your tickers when they are not used.  To “unpublish” a ticker, either delete it or cut and paste it into the Not published folder.

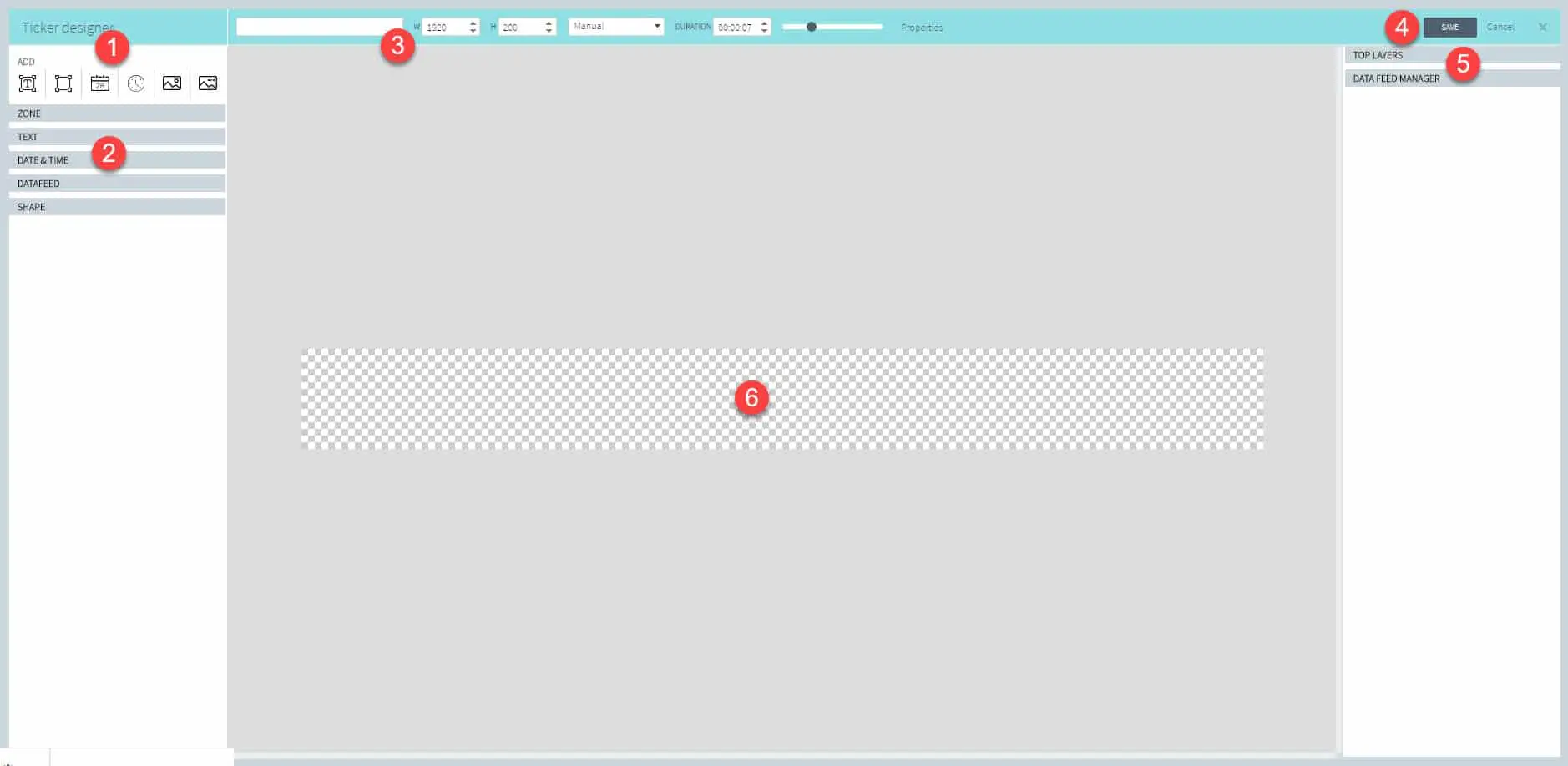

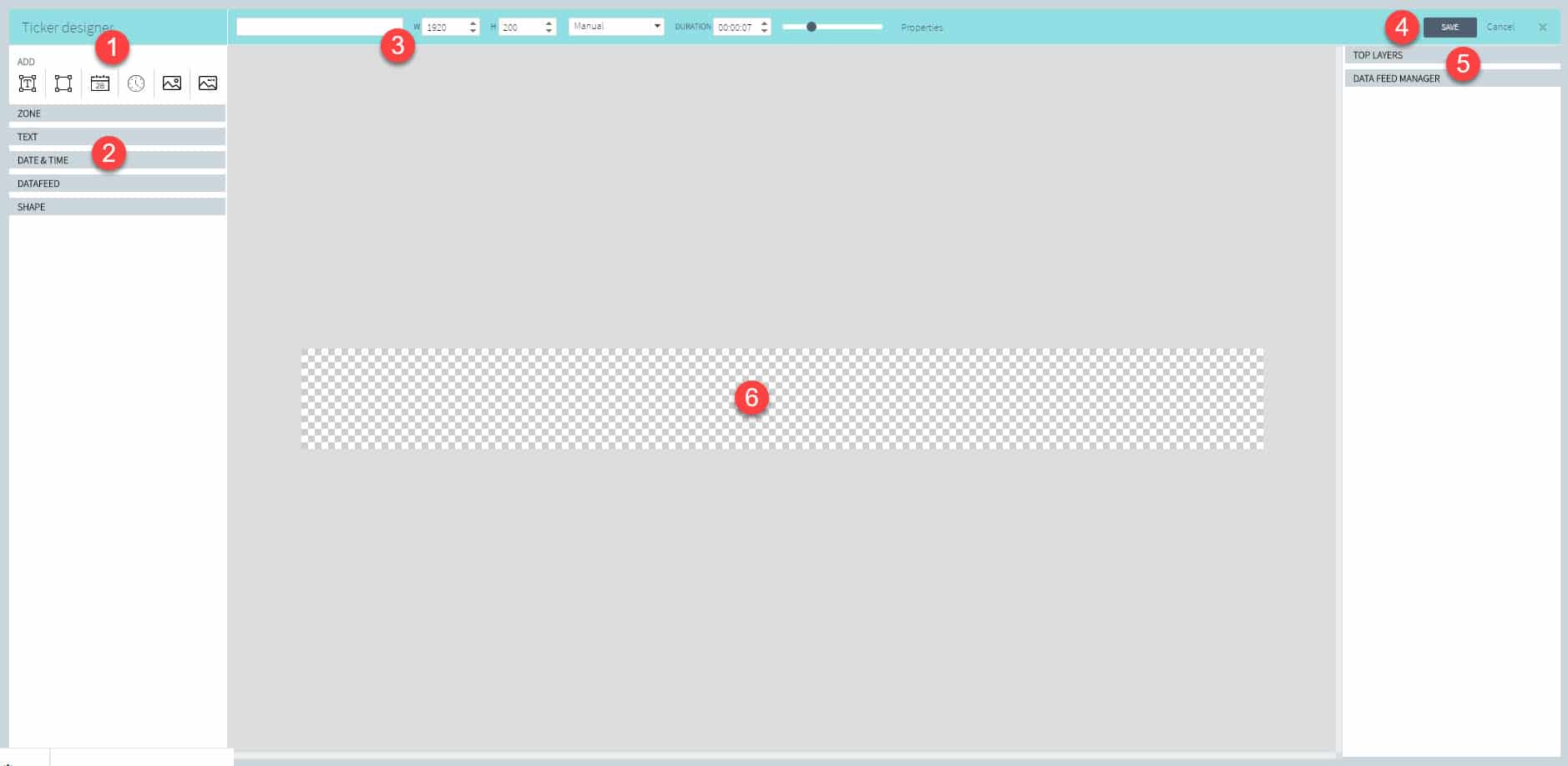

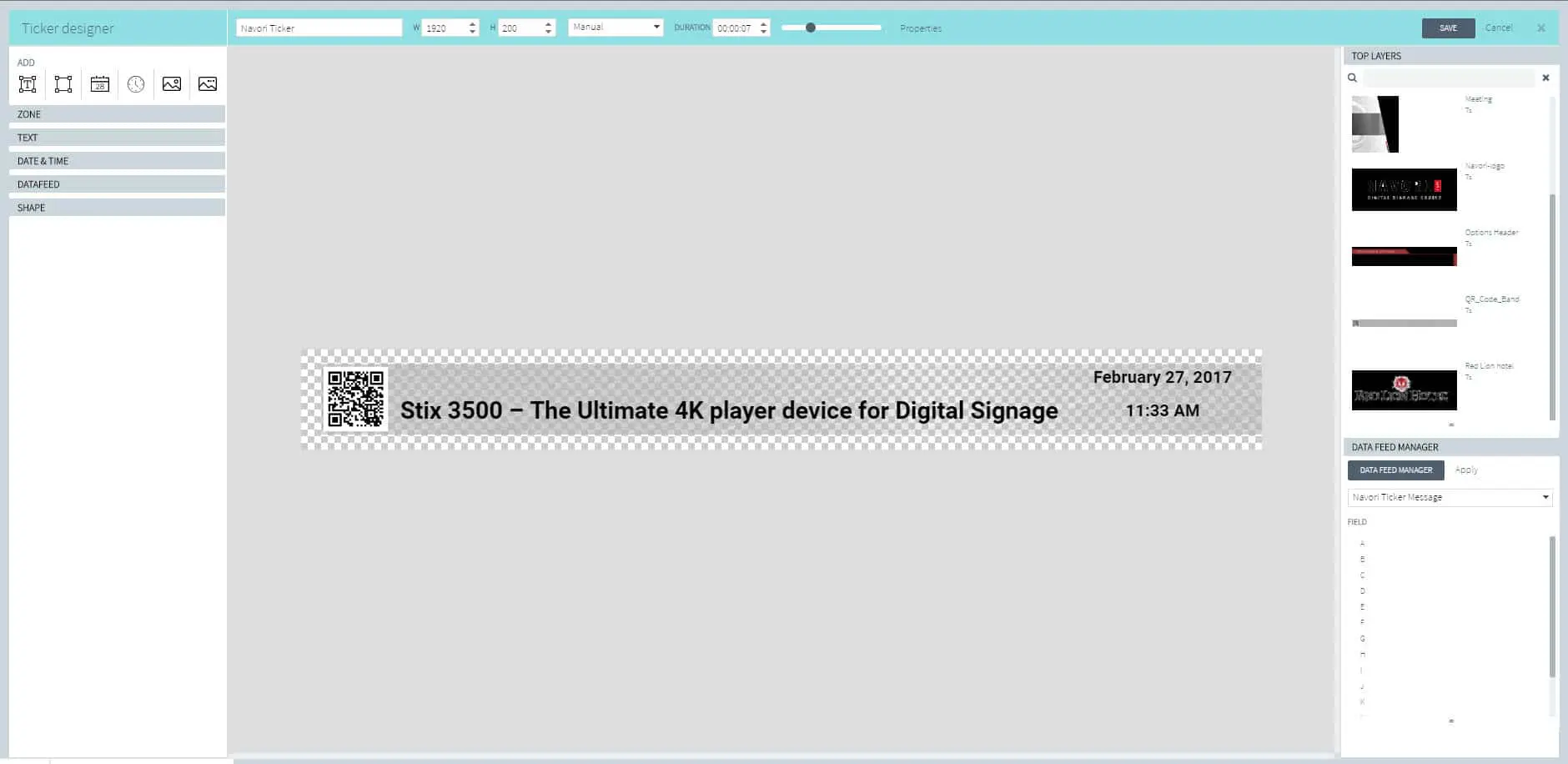

 Quick tour of the ticker designer interface

videostar

1. ADD: Text box, geometric shape, current date, current time, new content playing, coming next.

  • Selecting one of these items will add it to the stage area (#6).
  • Items are laid out on their own layer.  Items can be reordered forward or backward as needed.
  • The New content playing and Coming next items are data fields that you can reposition in the ticker area.  The new content playing field will show the name of the media currently shown on screen, behind the ticker.  The coming next field will show the name of the next content in the currently scheduled playlist.  The text can be customized (font, typographic controls, color…).

2. Item Properties: Zone, text, date & time, data feed, shape.

  • Each time you click on an item, a series of properties will expand so you can access and modify them.  For example, clicking on a text box will expand the Zone and Text properties so you can change their parameters.
  • Different items have different types of properties.
  • The ticker background is always transparent.  To add an opaque background, create a geometric shape that matches size of the ticker area.

3. Tool bar: Ticker name field, horizontal size, vertical size, duration setting, duration time, zoom view, ticker properties.

  • Tickers must be assigned a name before they can be saved to their respective folders.
  • The Ticker size will match the width of the player screen in the currently selected group.  If the group contains players with different screen resolutions, the highest value will be used.  If the display orientation is portrait, the ticker will appear in portrait mode in the designer.  Note that dimensions can be overridden by the user.  Setting the ticker size to match the screen will let you position ticker elements all over the screen.  Otherwise the ticker will be set to a height of 200 pixels, and the ticker will appear at the bottom of the screen,
  • The duration is set to MANUAL (uses the duration time, default is 07 seconds) as long as the template contains no data.  When RSS feeds or other data feeds are added, the duration will switch to AUTOMATIC and it will match the time required to display all the data in the feed.  You can switch this back to manual by clicking on the pull down menu.
  • The default duration is set to 7 seconds and can be changed either manually or by adding a data feed to the ticker.
  • The ticker view can be zoomed in or out using the slider.  You can drag the slider with your mouse or click on each side of the indicator.
  • The ticker properties window is accessed by clicking the properties link.

4. Save / Cancel / X: Click the desired option.

  • Only named tickers can be saved.
  • Save your work periodically.  Closing the browser tab or window, clicking the browser back button, will log you off and you will lose any unsaved work.
  • Clicking Cancel or X have the same effect.  The ticker designer window will close and your work will not be saved.

5. Layers, zones and data: Top layer images, data feed manager.

  • Top layer images will always appear on the top layer. Top layer images are not retrieved from the content library.  They must be uploaded into the template designer where they will be stored.  To access them, click the Top layer tab, then drag and drop the image into the template area.  Top layer images will overlap any other content on the template.  They always appear on top.

 Important considerations

  • Text boxes, time, date, geometric shapes, top level images and data fields can overlap.
  • Be sure to save your work periodically.
  • If you have multiple tickers in your published folder or assigned to playlists, the tickers will play in sequence and cycle continuously.

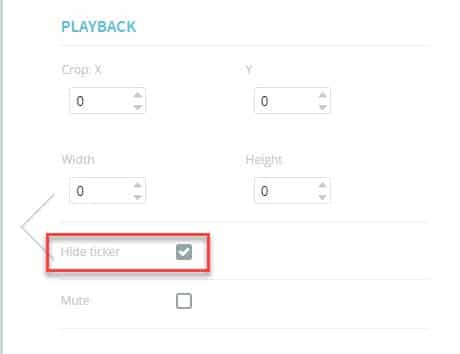

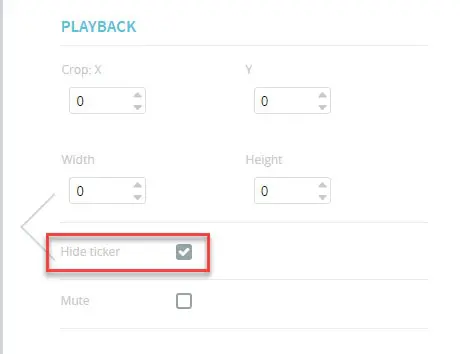

  • Tickers can be hidden temporarily by selecting the Hide ticker option in the media or template properties.  Once the content has finished playing, the ticker will reappear on screen.

videostar

Duplicating tickers

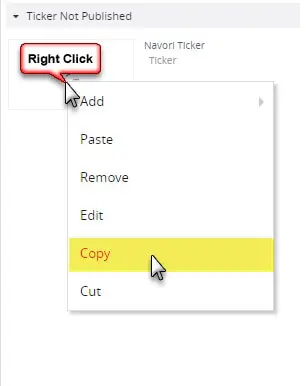

  • You can duplicate tickers via right-click > copy / paste in the content library window.

videostar

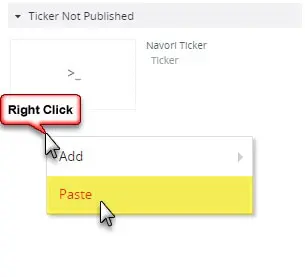

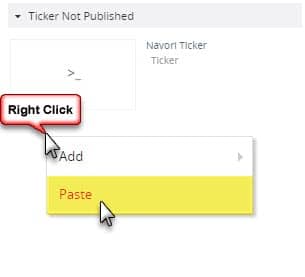

To paste a ticker, be sure to right-click in between thumbnails or in an empty area of the content library window.

videostar

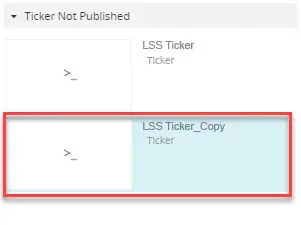

The duplicate ticker name will appear with the extension _Copy.

You can edit and rename the duplicate ticker as required.
